Tunable Inductors – QPL & COTS

Piconics Tunable Inductors have a tradition of being used in a wide variety of applications from Commercial Microwave to Space. Major military customers have used our QPL products for their reliability and tight quality control. Piconics Tunable Inductors feature excellent stability, high Q and controlled characteristics. They are packaged in both chip and thru-hole styles. Internal connections are welded for added reliability and avoid the issues normally associated with high temperature soldering. Encapsulation is mechanically interlocked to strengthen all surface (shear) bonds. Piconics Fixed Inductors have been the choice for extreme environment and high reliability systems for 50 years.

Tunable Chip Inductors

Tunable Chip Inductors Group

Tunable - Chip Inductors
Series Footprint (in)(W x L) L (uH) SRF Min (MHz) Adjustment Style QPL Number Data Sheet
PGV 0.125 x 0.160 0.012 - 1000 1.0 - 1200 Screw (Top) M83446/16-XX

PSV 0.165 x 0.320 0.012 - 1000 1.1 - 1200 Screw (Side) M83446/19-XX
PV 0.140 x 0.150 - 0.300 0.012 - 1000 1.1 - 1200 Slide M83446/17-XX
PVW 0.140 x 0.150 - 0.300 0.010 - 1000 1.1 - 1200 Slide M83446/18-XX

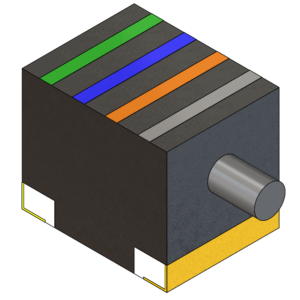

PKV 0.125 x 0.160 0.012 - 1000 1.0 - 1200 Slide NA

Tunable Leaded Inductors Group

Tunable Leaded Inductors

Tunable - Leaded Inductors
Series Footprint (in)(W x L) L (uH) SRF Min (MHz) Adjustment Style QPL Number Data Sheet
B 0.110 x 0.325 - 0.425 0.020 - 1000 1 - 1000 Screw (Side) M53231-XX & M53232-XX
G 0.090 x 0.150 - 0.300 0.018 - 1000 1.1 - 1000 Slide NA

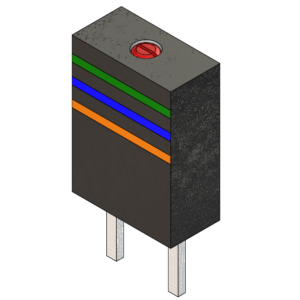

ST 0.100 - 0.200 0.020 - 1000 1.1 - 1000 Screw (Top) M53229-XX & M53230-XX

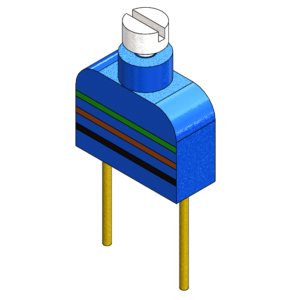

TT 0.110 - 0.285 0.020 - 1000 1.1 - 1000 Screw (Top) M53233-XX & M53234-XX
