Fixed Inductors – QPL & COTS

Piconics Fixed Inductors have a tradition of being used in a wide variety of applications from Commercial Microwave to Space. Major military customers have used our QPL products for their reliability and tight quality control. Piconics Fixed Inductors feature excellent stability, high Q and controlled characteristics. They are packaged in both chip and thru-hole styles. Internal connections are welded for added reliability and avoid the issues normally associated with high temperature soldering. Encapsulation is mechanically interlocked to strengthen all surface (shear) bonds. Piconics Fixed Inductors have been the choice for extreme environment and high reliability systems for 50 years.

 Fixed Chip Inductors

Fixed Chip Inductors
Series Footprint (in)(W x L) L (uH) SRF Min (MHz) QPL Number Data Sheet

P 0.140 x 0.180 0.010 - 1000 1.1 - 1200 M83446/12-XX

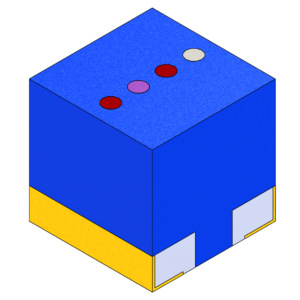

PA 0.100 x 0.100 0.010 - 100 4 - 1200 M83446/13-XX

PG 0.125 x 0.160 0.010 - 100 4 - 1200 M83446/14-XX

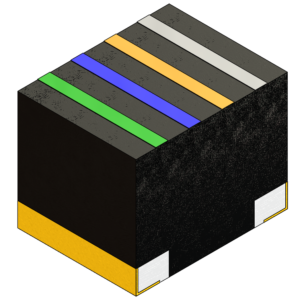

PK 0.125 x 0.160 0.010 - 100 4 - 1200 M83446/14-XX

PW 0.140 x 0.180 0.010 - 1000 1.1 - 1200 M83446/15-XX


 Fixed Leaded Inductors


Fixed Leaded Inductors
Series Footprint (in)(W x L) L (uH) SRF Min (MHz) QPL Number Data Sheet

C 0.090 - 0.200 0.010 - 1000 1.1 - 1200 NA

D 0.085 - 0.200 0.010 - 1000 1.1 - 1200 NA

JA 0.060 - 0.180 0.045 - 1000 1.1 - 3000 NA

JC 0.085 - 0.180 0.045 - 1000 1.1 - 3000 NA

Tech Info
QPL Part Number Cross Reference
Core Material Notes
Testing Notes
Lead Material Notes
